4G Alarm Caller - AD340-SLF     　                        SMS AlarmLogger

★ Introduction

AD340-SLF SMS AlarmLogger is a unique member in the AD340 AlarmCaller family. Instead of detecting alarm conditions and sent out messages, it is used to receive a text message from other AlarmCaller. Using SMS AlarmLogger software, the received messages are transferred to a PC and stored in a database. Users can use the software to view the text messages or generate a logging report. It is also possible for other applications to utilize the message log database.

★ Features

  • Automatic logging of message sent by AD340 AlarmCaller.

  • Store messages in Access database and text file.

  • View message by date or originating phone numbers. Provide message log report.

  • PC hardware requirement

      ◇ Windows XP / 7 / 8 /10 /11

      ◇ At lease one serial COM port

★ Specification

♦ Power

  • Power Requirement： DC 10~30V
  • Power Consumption：5W maximum

♦ Built-in 4G Modem

  • Frequency Bands：

GSM：850/900/1800/1900 MHz

WCDMA：B1/B2/B5/B8

LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD：B40

  • Support LTE/WCDMA receive diversity

  • SMS: Point to point MT / MO and Cell Broadcast
  • USIM Interface ：1.8 / 3V
  • Compliant to 3GPP E-UTRA Release 11

♦ Communication

  •  1 RS-232 port, used to transfer received message to a PC.

♦ Software

  • Include Windows software that received SMS from the AD310-SLF and store the message content and source phone number in text or Microsoft Access format.

♦ Operation

  • 4 System LED：Ready, Signal, Alarm and Error

♦ Mechanical

  • Dimension：170mm(L) ×120mm(W) ×30mm(H)

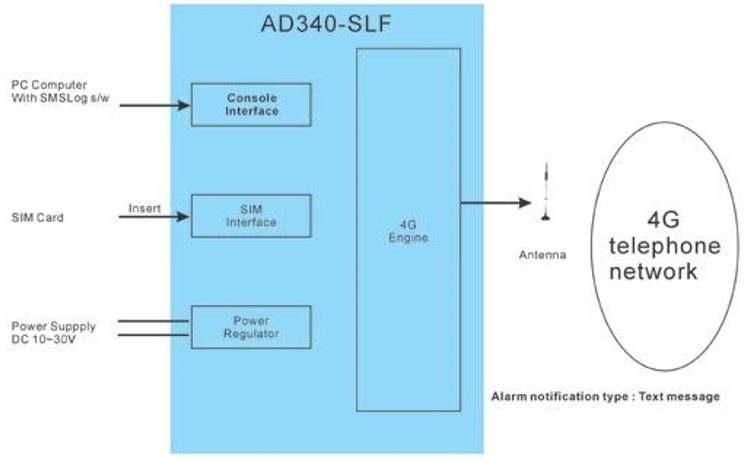

★ Block Diagram
