4G Alarm Caller-AD340-DI1VM     　     Digital Input*1        　   Text/Voices Notification　  　　 　　　　　　

★ Introduction

AD340-DI1VM extends the functionality of AD340-DI1 by adding voice message notification. When an alarm signal is detected on its digital input, it can send either a text message or a pre-recorded voice message to the designated users. Text or voice alarm reset message can also be sent when the alarm condition is cleared.

★ Features
  • Easy configuration：Configuration software，no programming included.
  • Instant alarm notification：Alarm messages can reach users' mobile phones in seconds.
  • Automatic alarm reset notification：A reset message can be sent to notify users that the alarm is cleared.
  • Multiple message receivers：All specified users will be notified when alarm occurred or cleared.
  • User defined messages：Message contents can be freely defined by users.
  • Use wireless 4G LTE network：There is no need to install a fixed phone line.
  • Guaranteed text message delivery. If the user's mobile phone is offline, message will be stored by its 4G service provider for a certain period of time and forward to the user when available.
  • Provide text and voice messages notification.
★ Specification

♦ Power

  • Power Requirement: DC 10~30V
  • Power Consumption: 5W maximum

♦ Built-in 4G Modem

  • Frequency Bands：

GSM：850/900/1800/1900 MHz

WCDMA：B1/B2/B5/B8

LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B28

LTE-TDD：B40

  • Support LTE/WCDMA receive diversity

  • SMS: Point to point MT / MO and Cell Broadcast
  • USIM Interface ：1.8 / 3V
  • Compliant to 3GPP E-UTRA Release 11

♦ Alarm Input

  • Input Type：Digital input (Dry contact closure) with photo isolation.

  • Number of Inputs：1

  • Isolation：5000Vrms

♦ Messages and Phone Numbers

  • Use SIM card for message and phone number storage.

  • Users can define 1 alarm message and 1 reset messages

  • Use any regular mobile handset to set message contents and phone numbers.

♦ Voice

  • Two user recordable voice messages

  • Voice messages stored in non-volatile memory.
  • Built-in microphone and speaker.

♦ Operation

  • 4 System LED：Ready, Signal, Alarm and Error

  • 1 Input LED：Alarm input status indication

  • 7-segment LED and 4 buttons for voice recording and playback.

♦ Mechanical Block Diagram

  • Dimension：170mm(L) ×120mm(W) ×30mm(H)

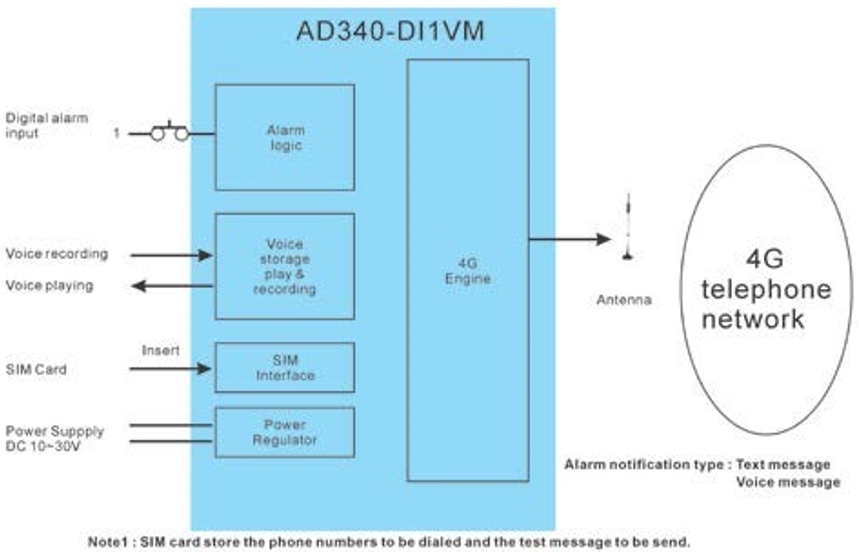

★ Block Diagram
